Bellows Legacy Reissue
Fuzz Driver
Bellows®
Legacy Reissue
Fuzz Driver

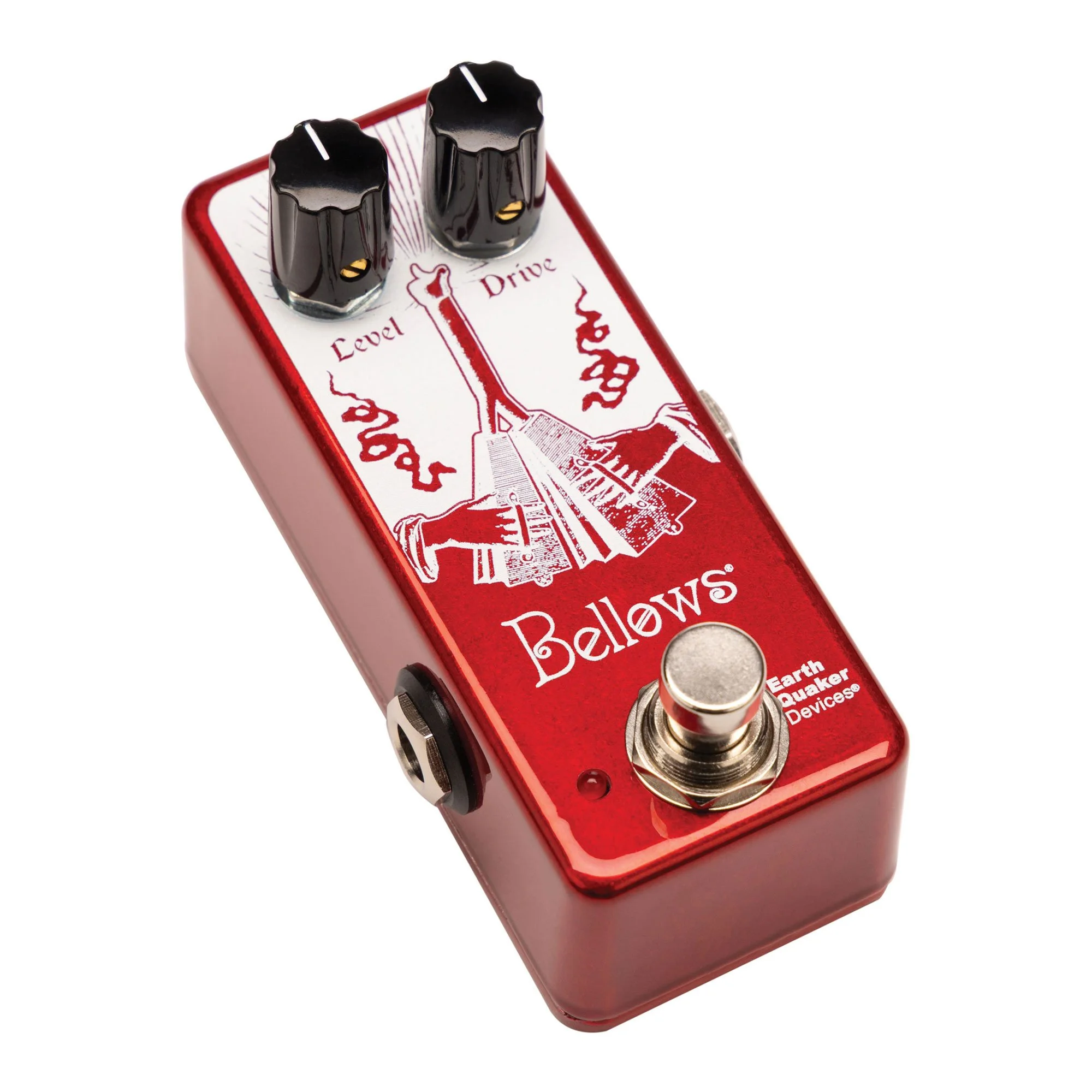

Bellows is a two-knob wonder imbued with a whole lot of character for such a wee, simple, and unassuming pedal. It straddles the line between amp-like grit and fuzzy saturation to create a remarkably vintage, tweed-type tone.
Similar to the volume control of a “non master” amp, the Drive determines how hard the signal hits the input. At lower drive levels it’s a little wider and grittier. If you can resist the usual urge to dime the Drive, you’ll be rewarded with forcefully mellow, amp-like break up. Slowly bring up the Drive and you’ll eventually end up in blown out fuzz land, having passed a bunch of useful distorted places on your way. It’s pretty much every era of rock n’ roll in a box.
USA Customers
Order directly from Sweetwater.com→
Canada Customers
Order directly from Long & McQuade→
International Customers
Check with your local dealer→

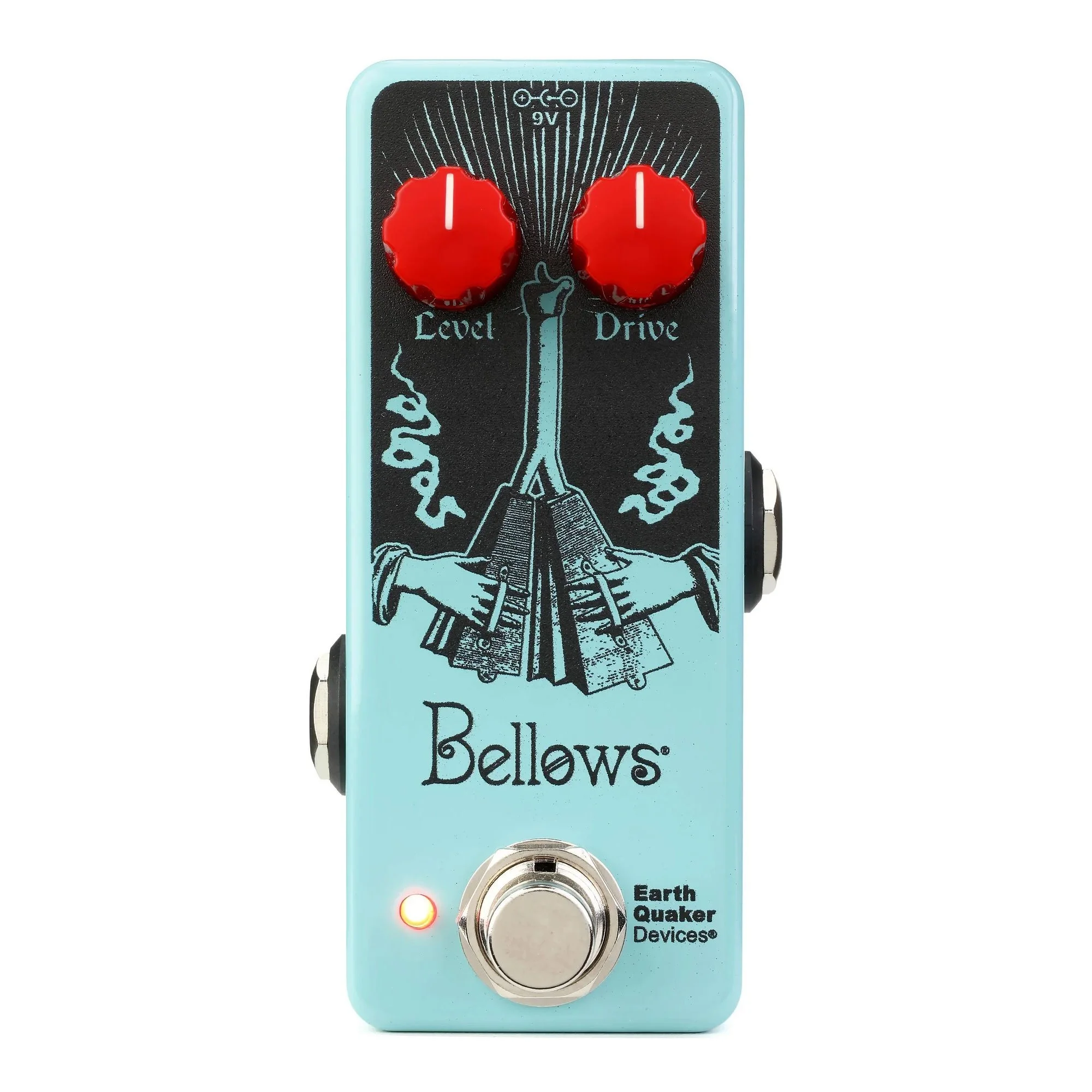

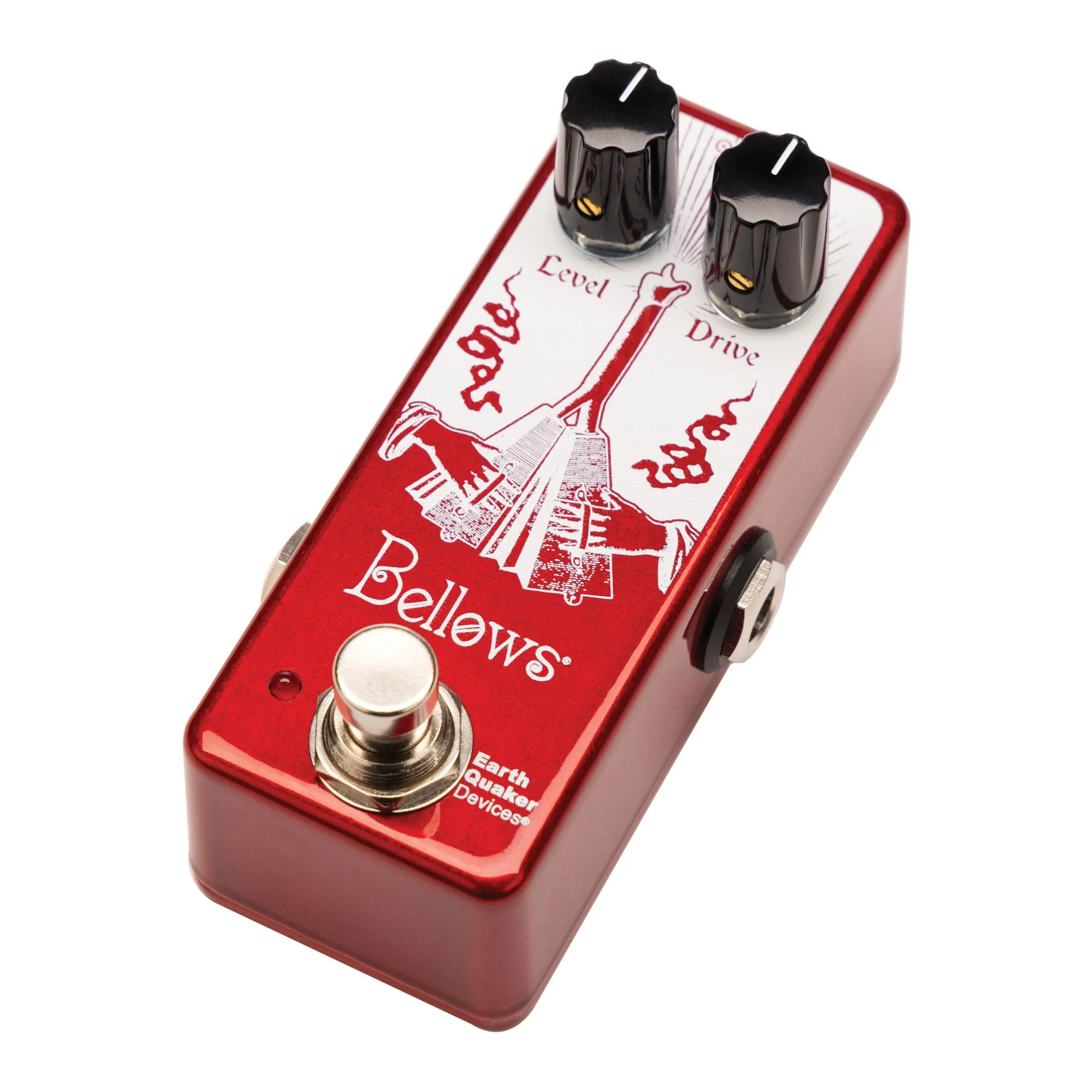

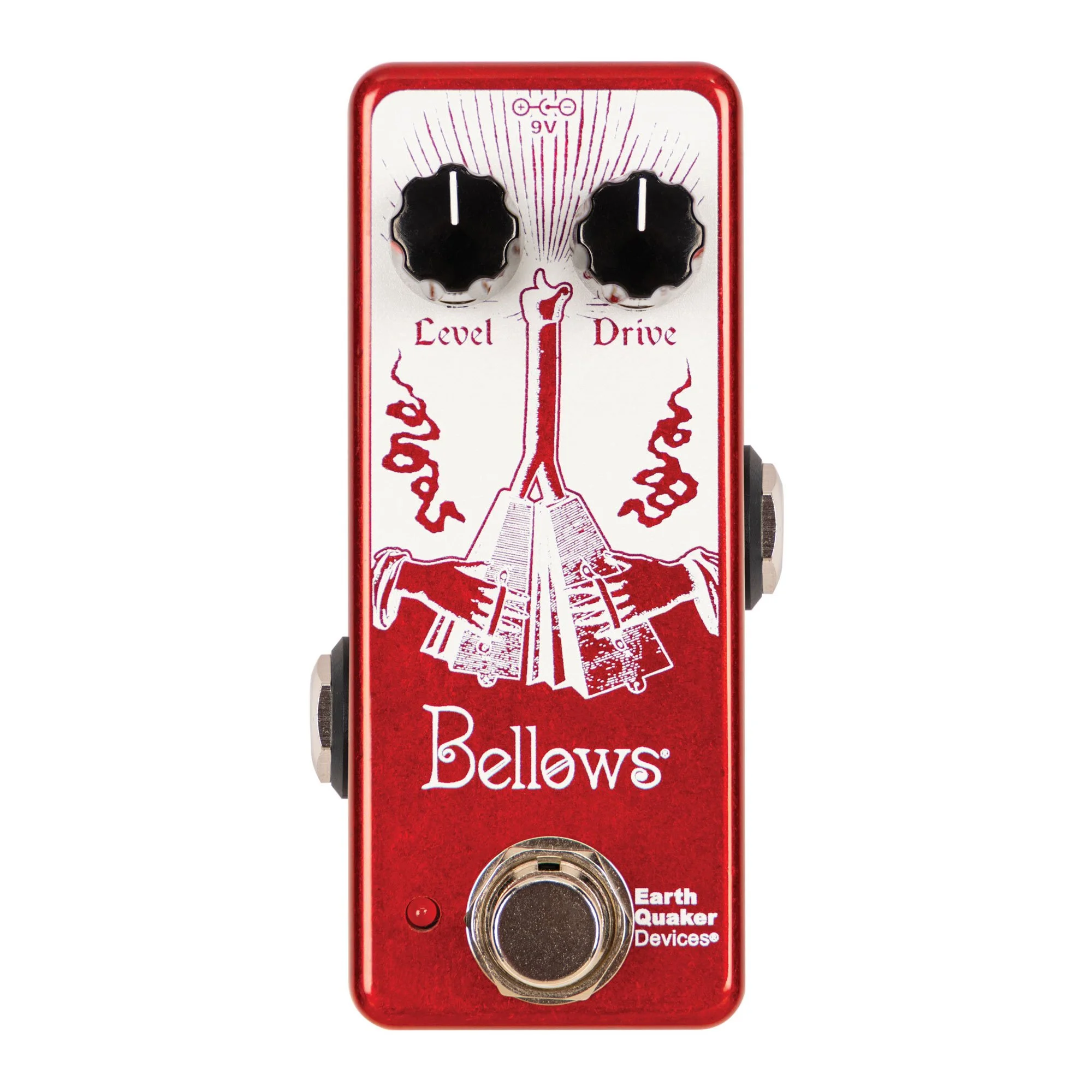

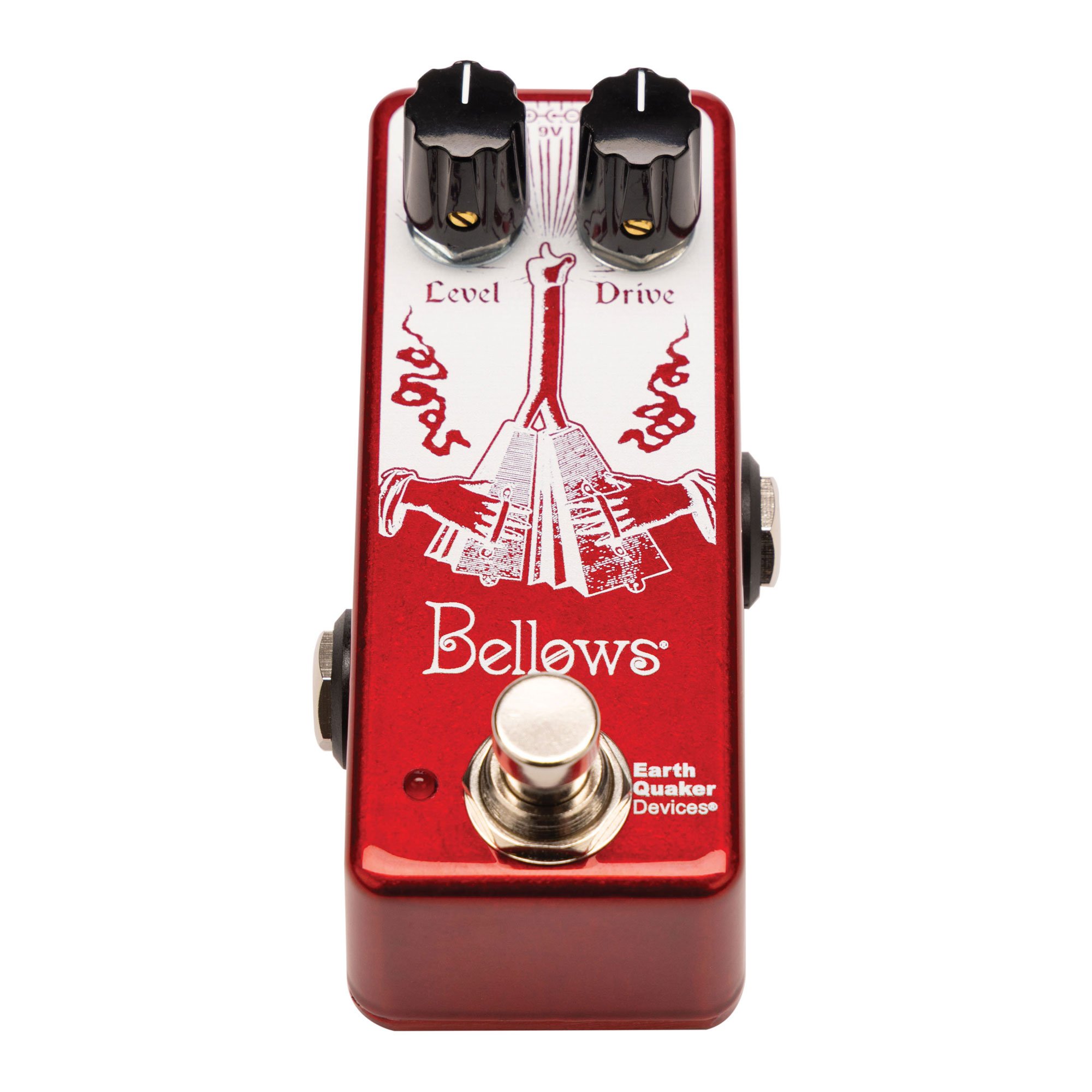

Controls
1. Level: Adjusts the output level by setting the bias voltage of the transistor. A small amount of noise while dialing this in is perfectly normal.
2. Drive: Controls the input gain of the device for different levels of dirt. You’ll find that it is thinner and more clean counterclockwise and thicker with more growl clockwise.
Audio Samples
GUITAR SAMPLES
-
Dimensions
4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw
13 mA
Input Impedance
250 kΩ
Output Impedance
<1 kΩ
Switching
This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.Power

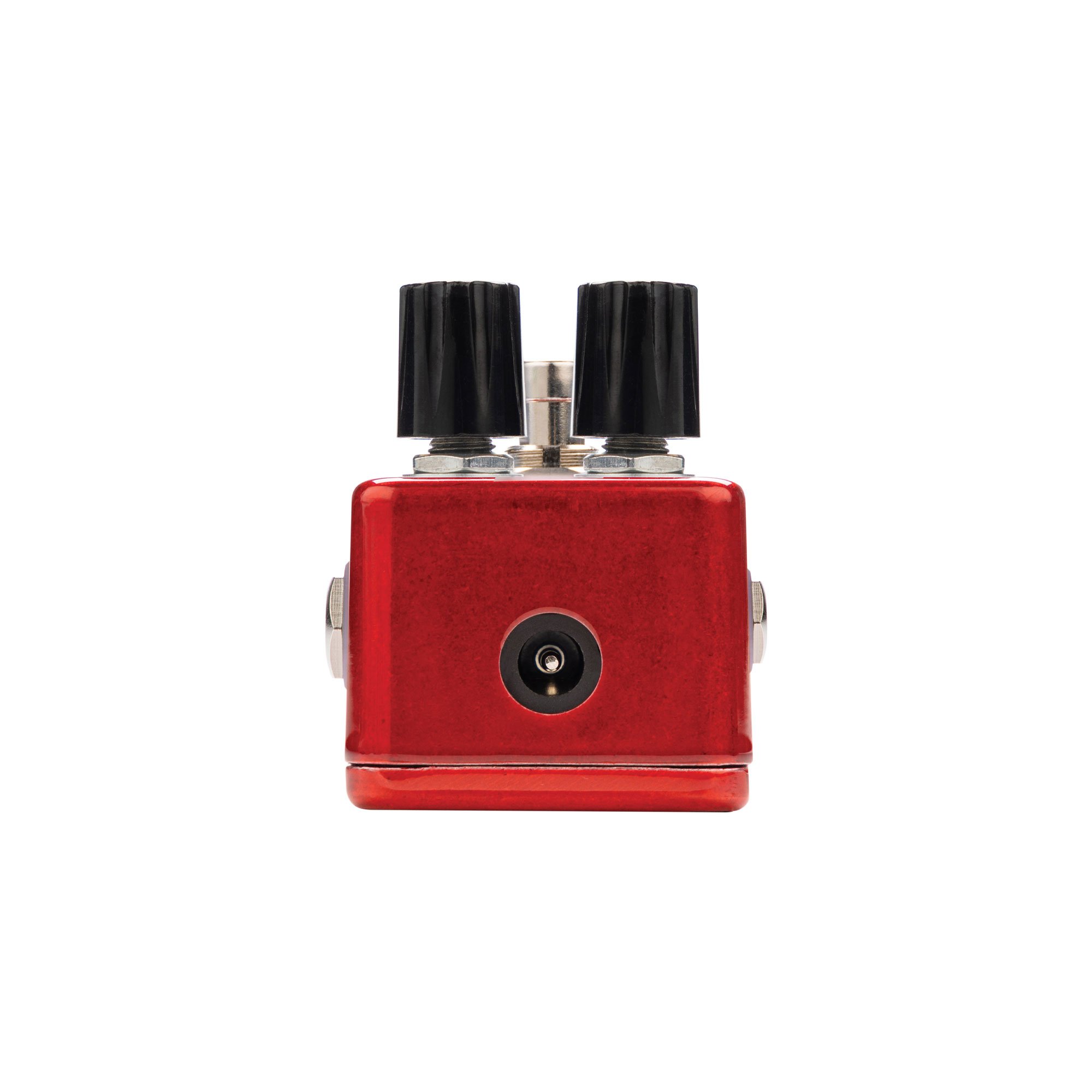

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!Artwork
Artwork by Geoffrey Crowe
-
Download the Operation Manual →
-
All our devices come with a limited lifetime warranty. If it breaks, we will fix it. Should you encounter any issues, please visit earthquakerdevices.com/support.
